Flip-Style and Elemental-Style Diaper

There is now a VIDEO tutorial for this on my YouTube channel.

This was made by request of one of my blog followers to be similar to the Flip system diaper covers by Cotton Babies.  However, it doesn't use the trim casing that they use or the stretchy tabs. You can download/print it HERE.

There is a NB/S version now as well.
** My other diaper templates can be downloaded at http://prefold2fitted.blogspot.com/2012/10/online-free-downloads.html

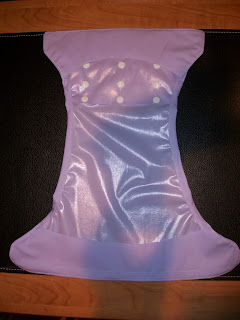

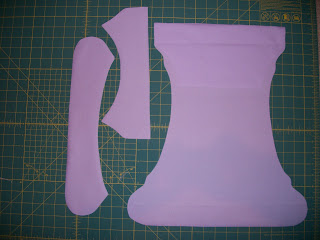

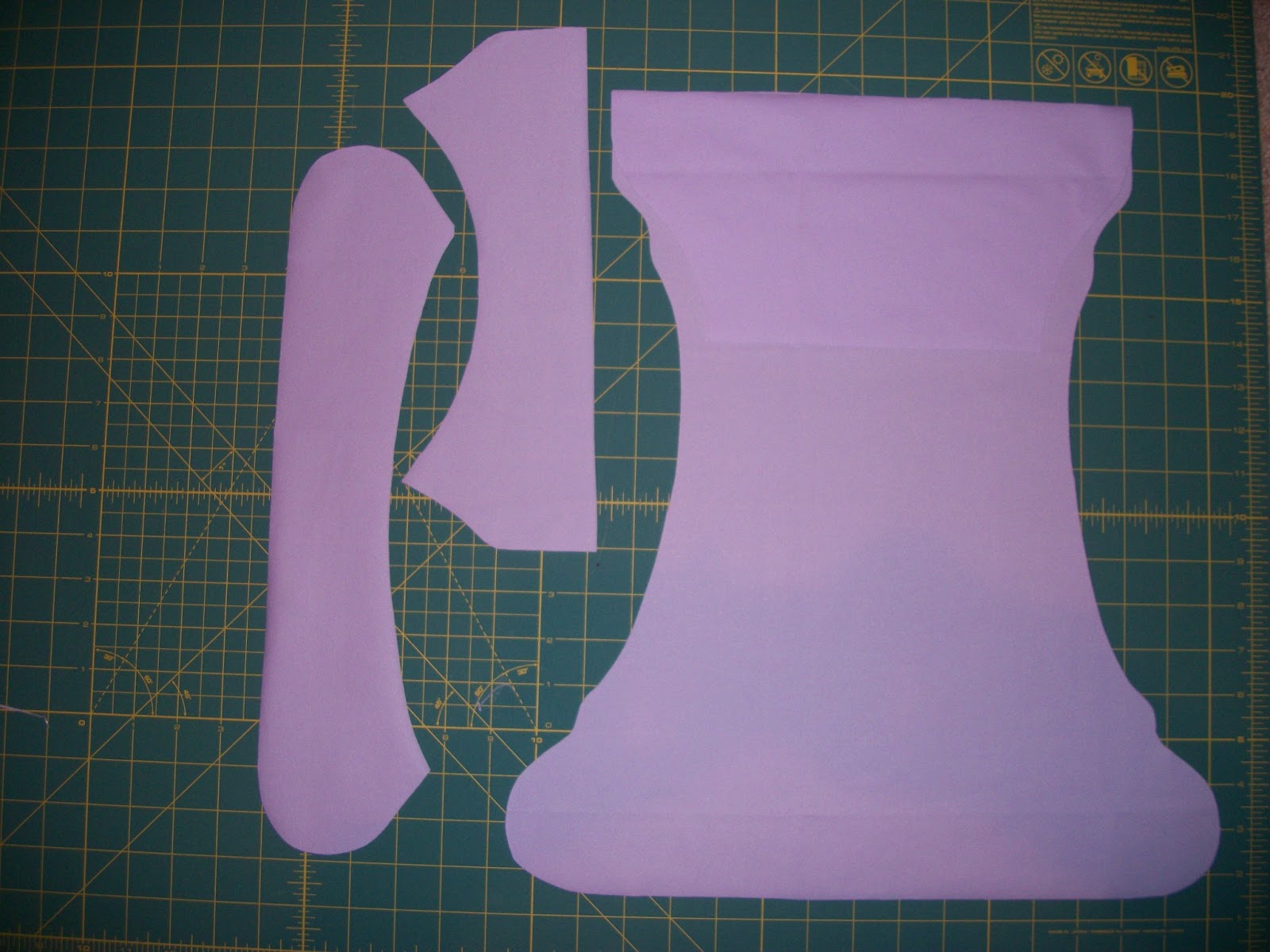

Cut out all your PUL pieces (including snap-backing).

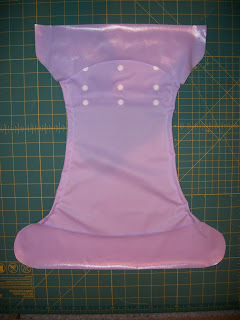

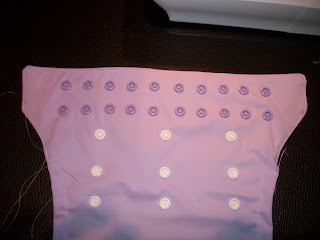

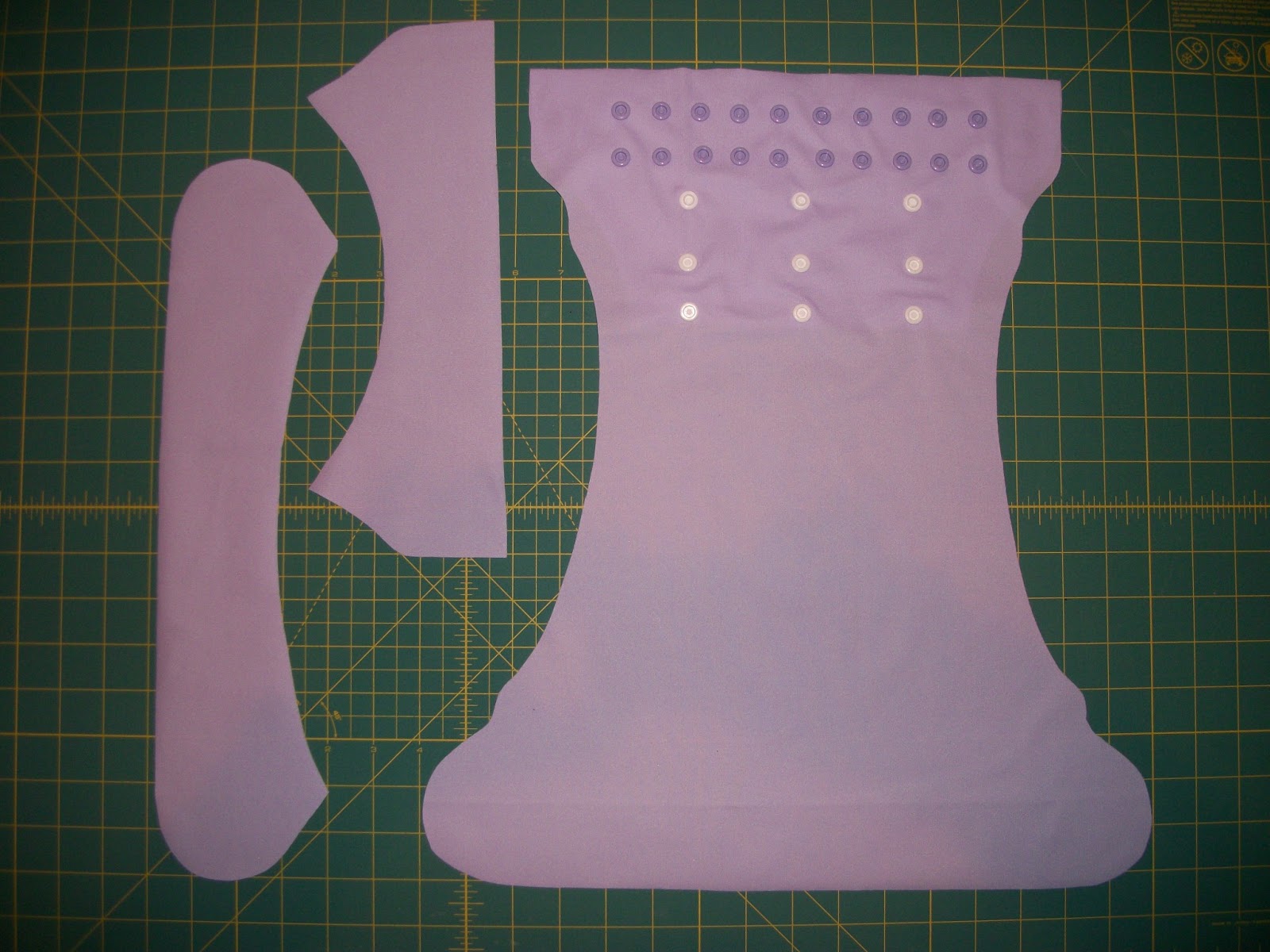

 Apply your rise and front panel snaps (or rise snaps and front loop strip for hook and loop).

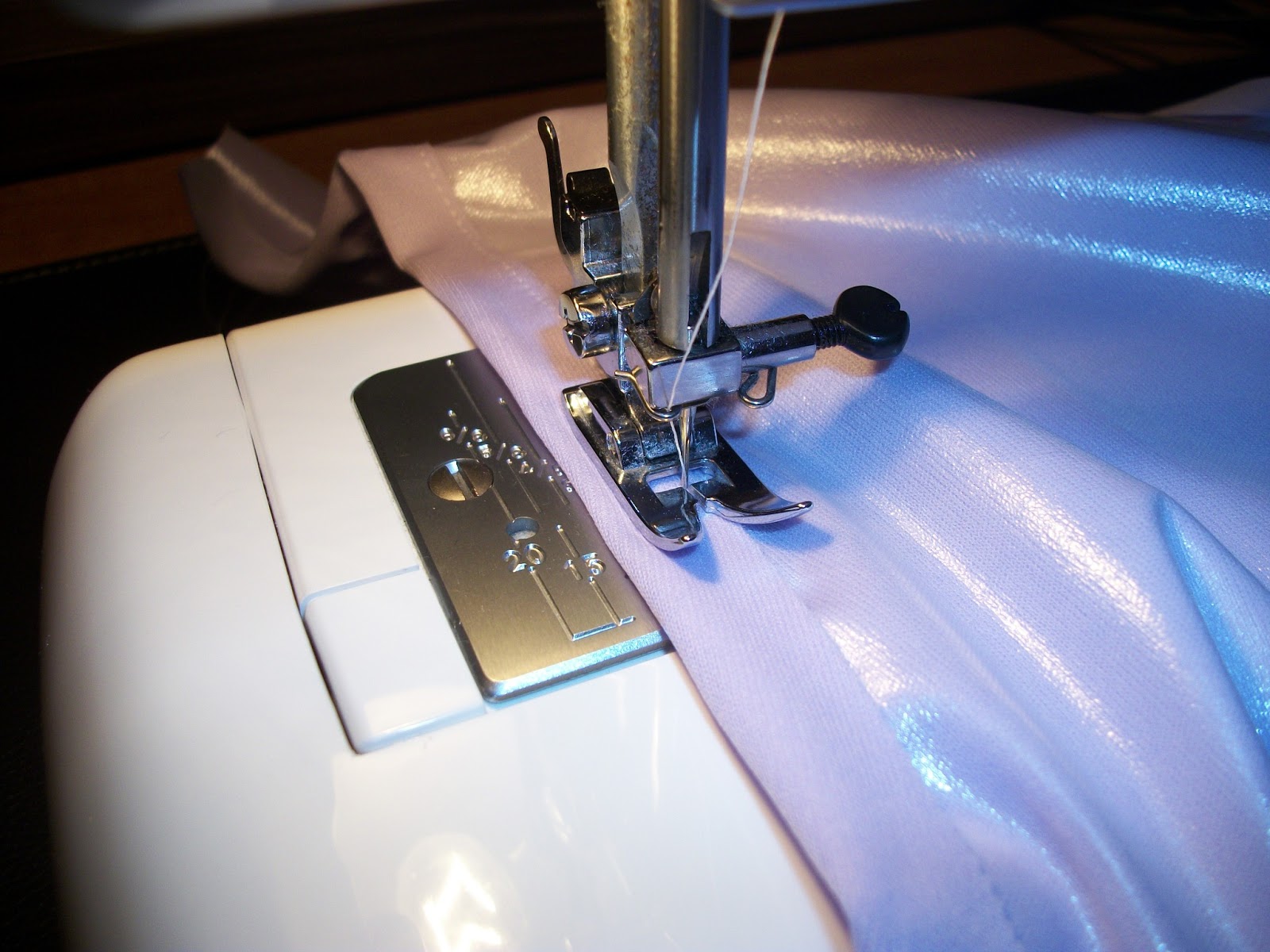

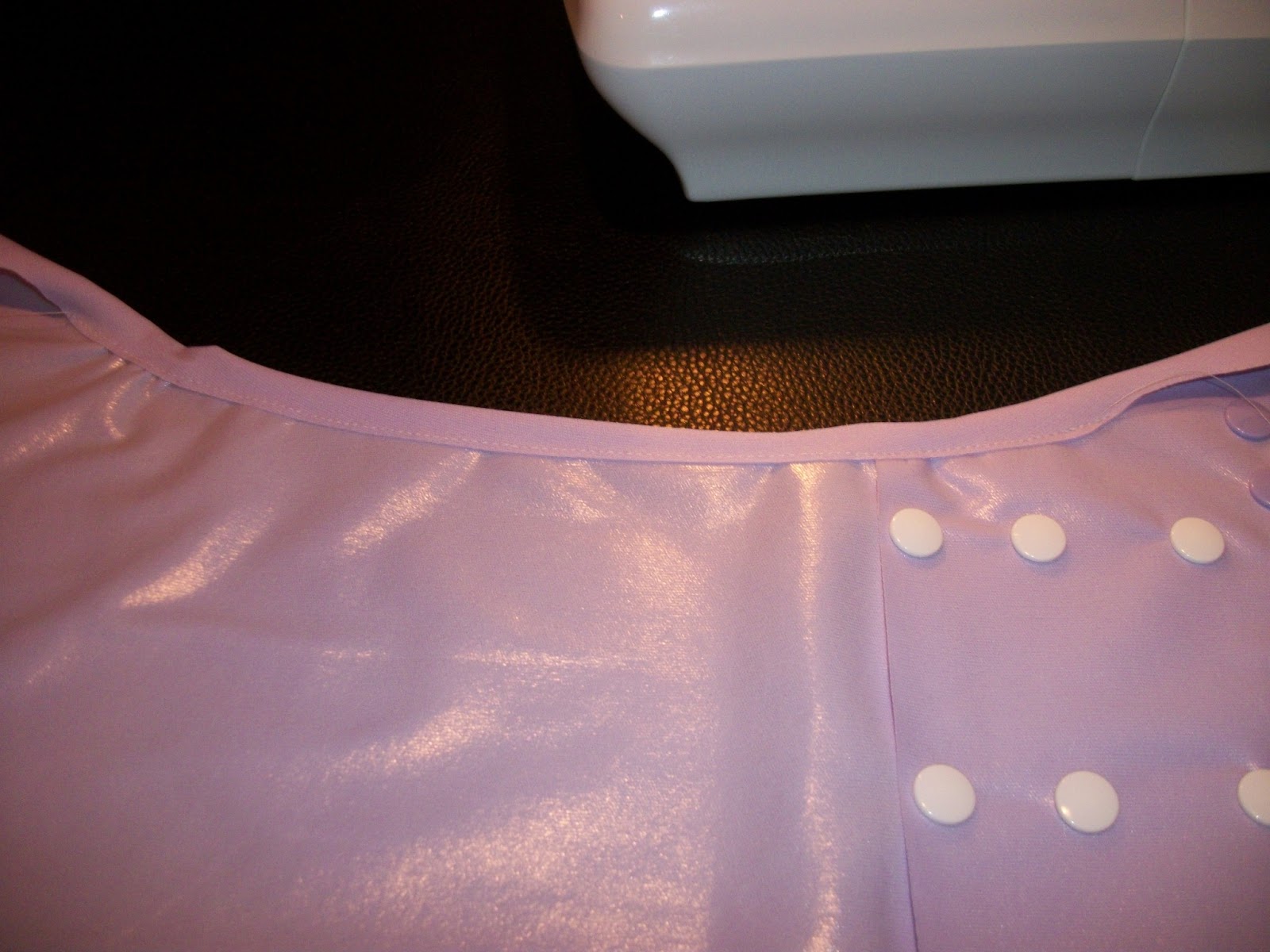

 Fold in the edge along the leg elastic areas and sew your casings (I use 3/8", but CB uses 1/4").

 Leg elastic casings sewn.

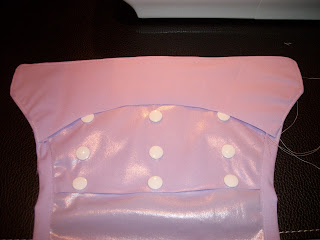

 Lay out your tucking pocket pieces face to face with the laminated sides out.
 Trim up your edges and turn the pockets.

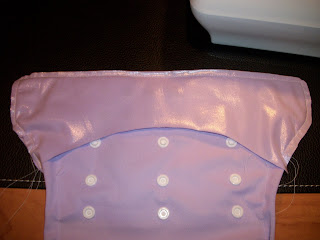

 Top-stitch around your pockets.

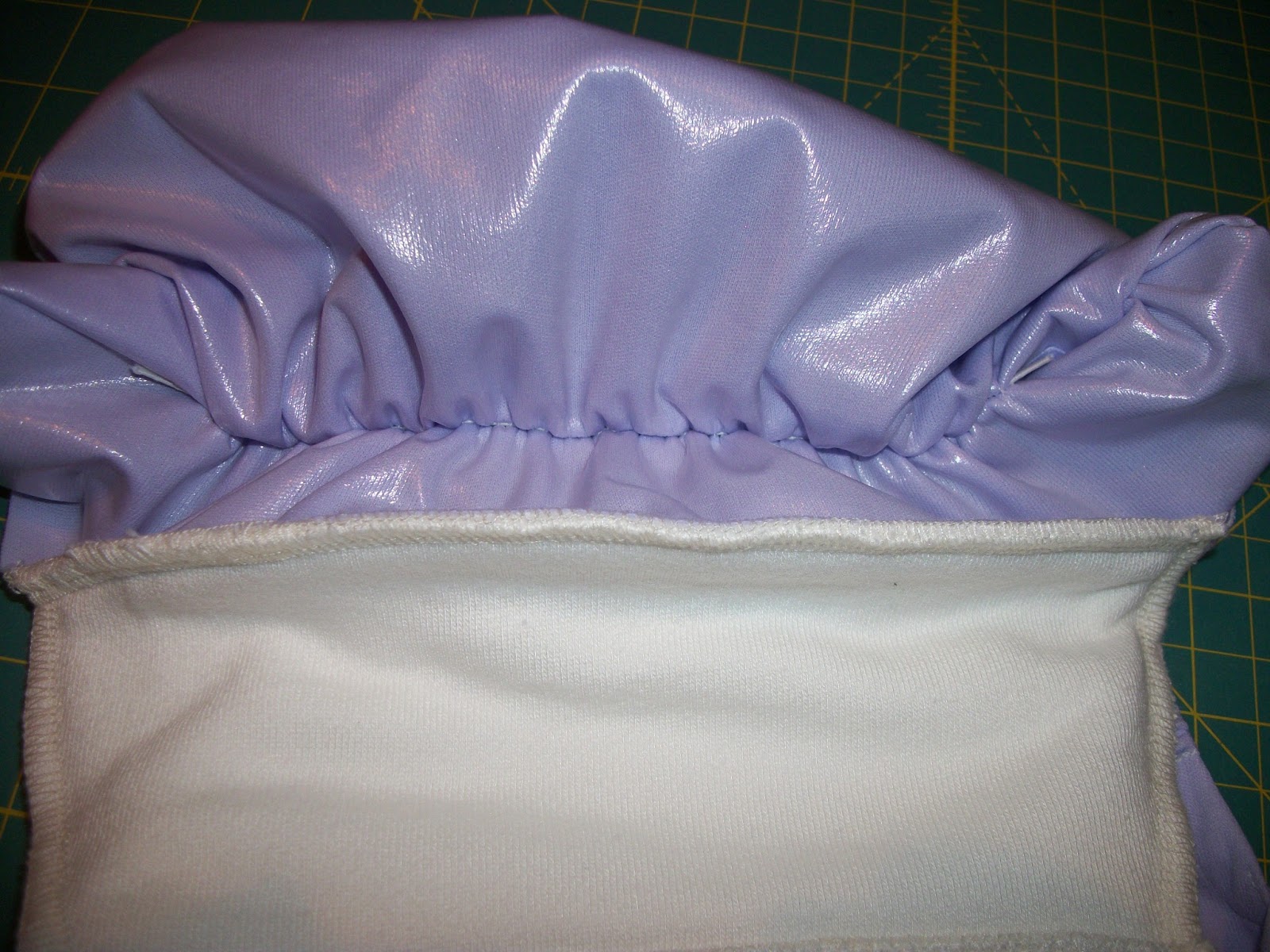

 Sew your back elastic casing.

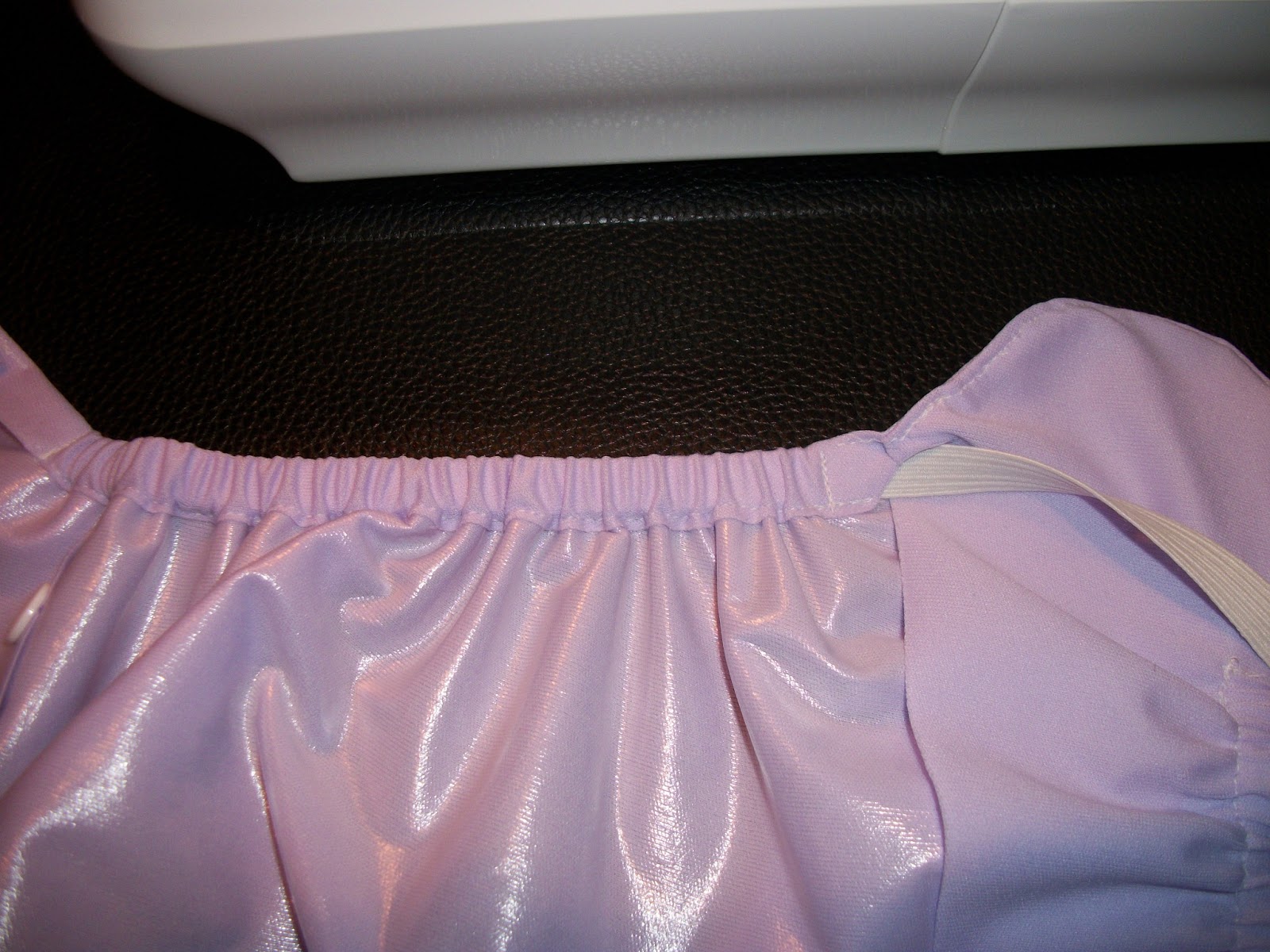

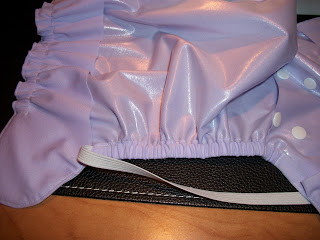

 Install your elastics (the casings are all open and easy to thread through).
 Stretch to desired tension and tack+trim.
 Now just apply your wing snaps.

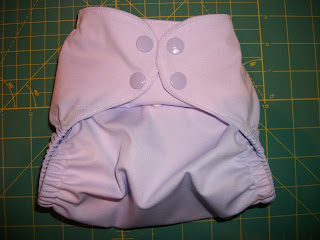

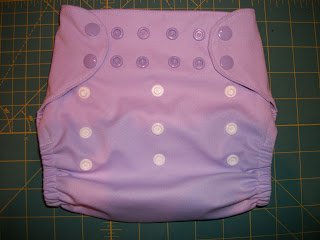

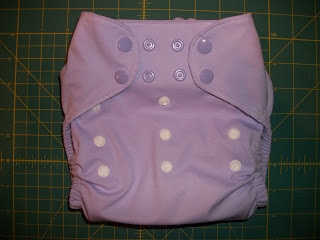

 Finished outside:

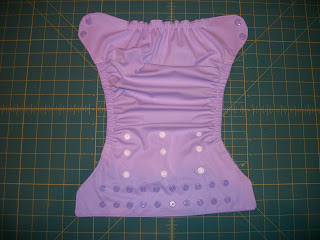

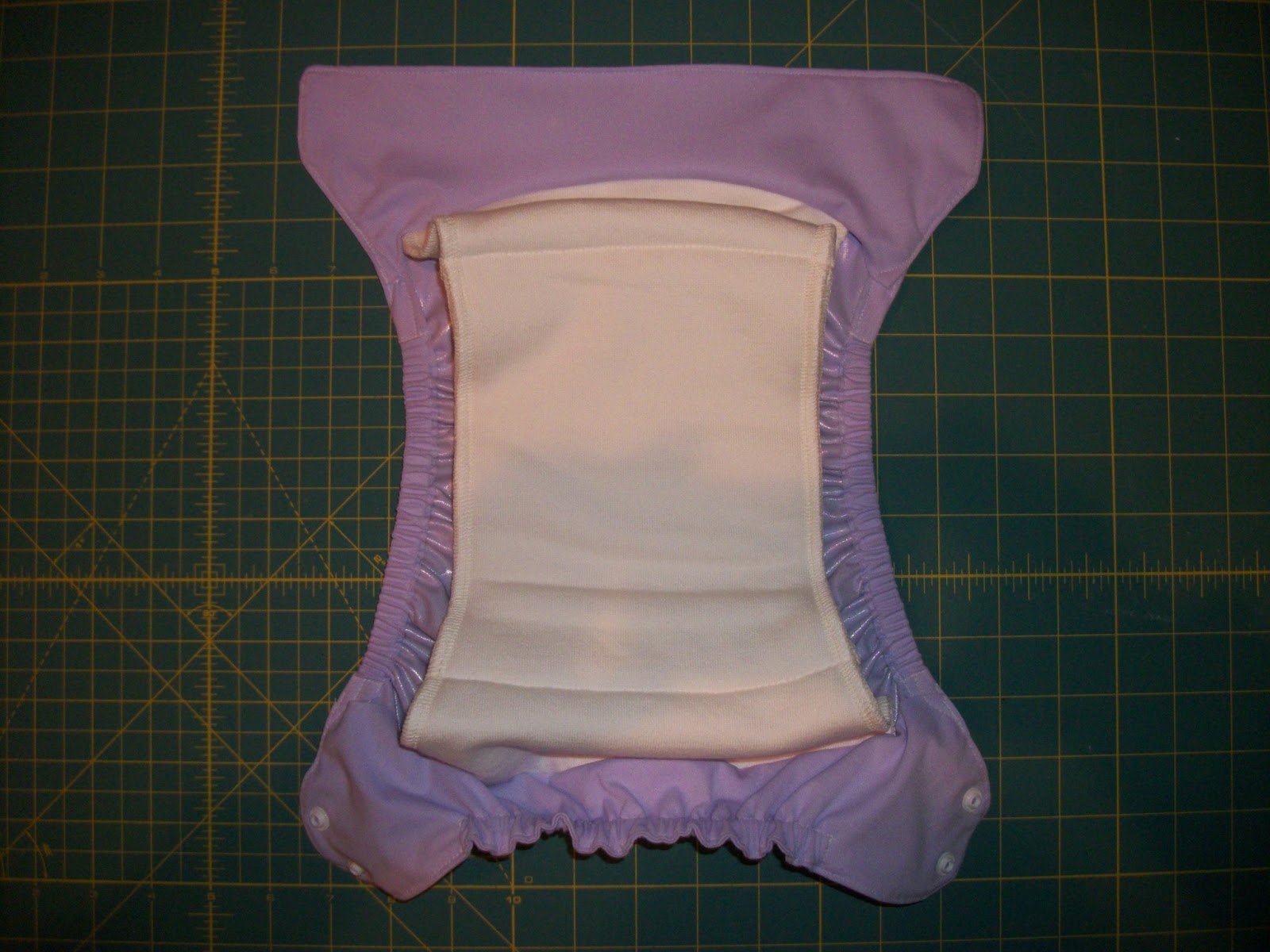

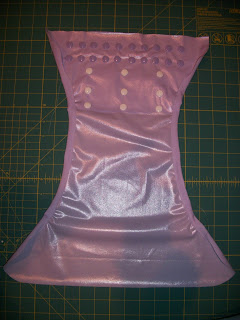

 Finished Inside:
 Smallest setting:

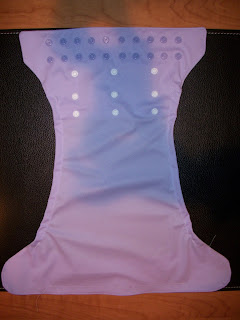

 Full rise and larger waist snap setting:

By popular demand, I have added a tutorial and template for a Newborn-Small version as well.
----------------------------------------------------------------

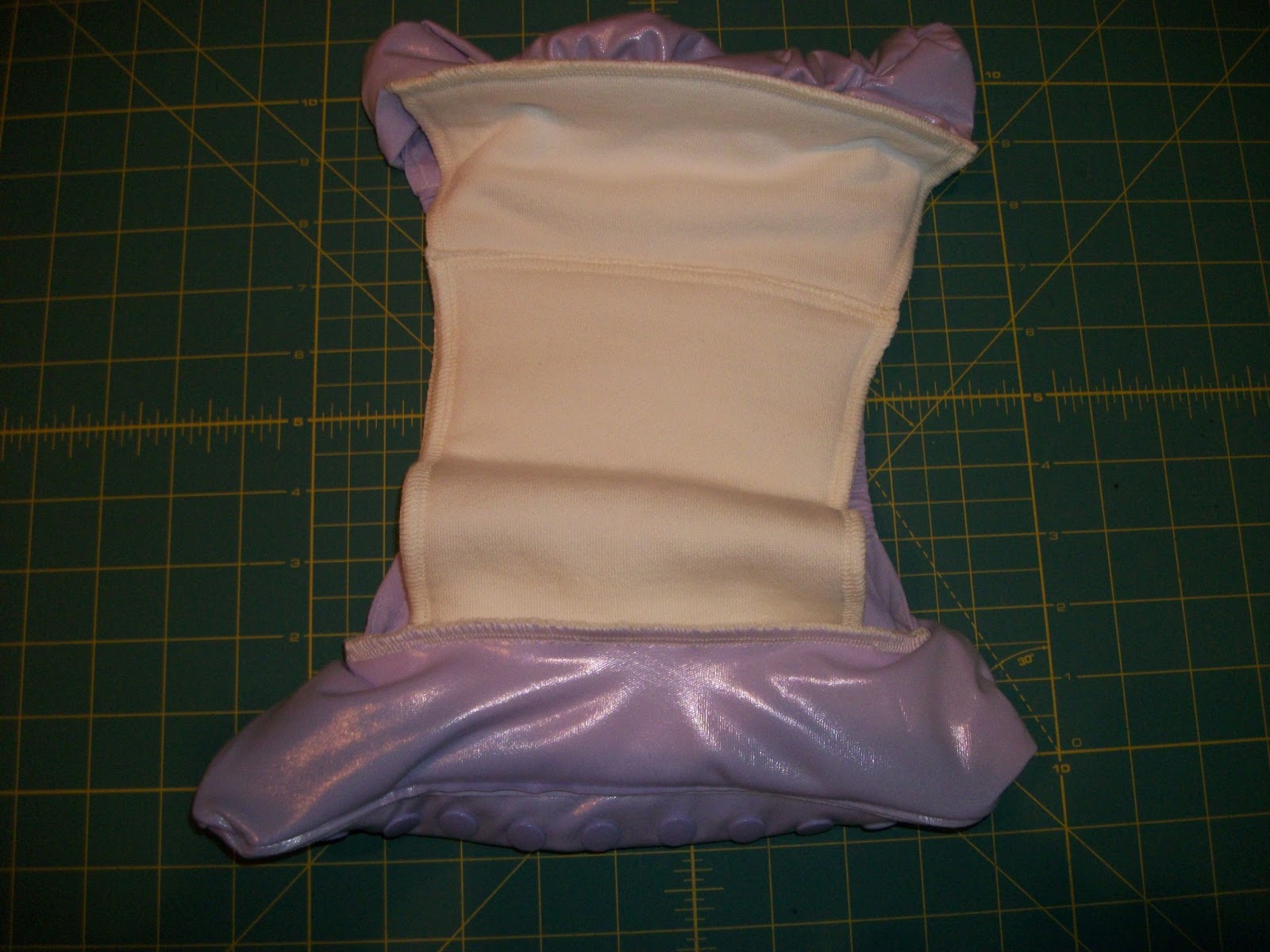

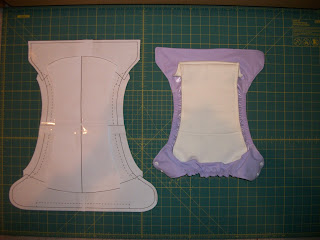

And I guess, with their new Elemental being just like a Flip with the sewn-in soakers, you could easily use this to make your own faux Elemental 2.0s (or easily convert Flips INTO Elementals) just by adding the SOAKER...

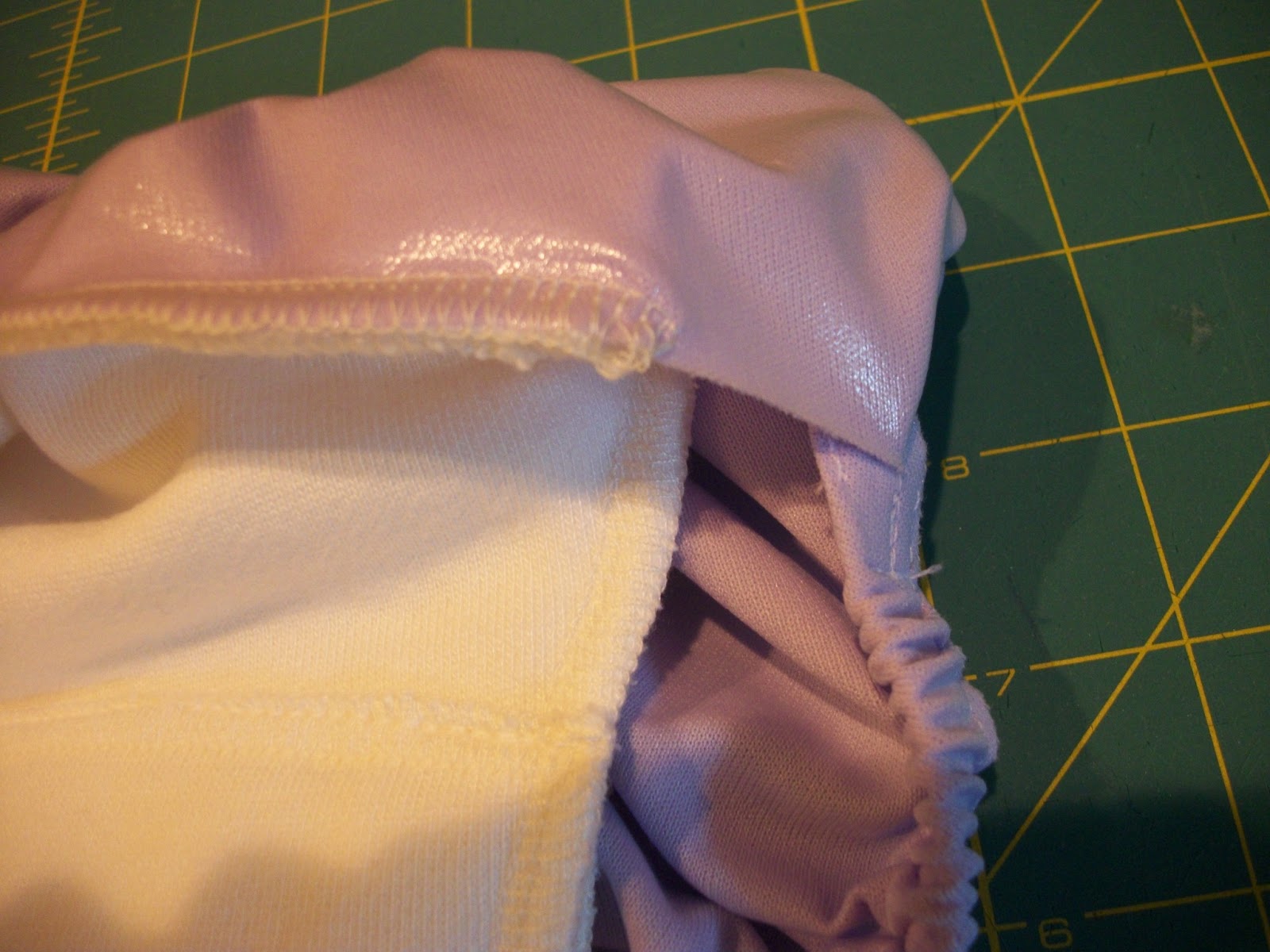

I was asked how I stitched the soaker into the body with no seams showing.  I just turned the cover inside-out with the pockets flipped so the shiny side of the PUL was showing, and then serged (but you could sew regularly as well) the very edges of the pocket flaps to the edges of the soaker.  :)
